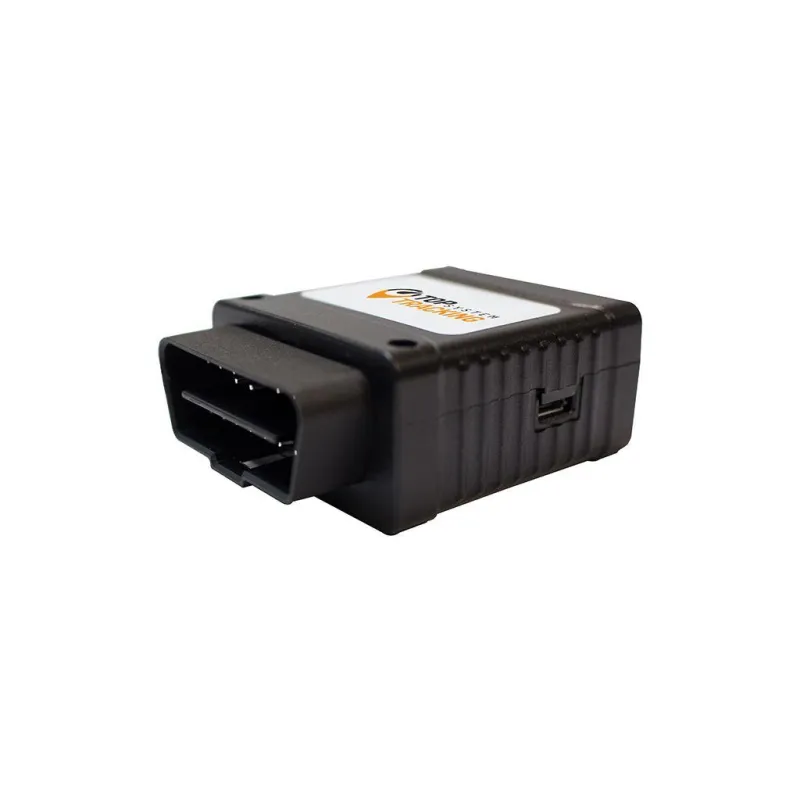

Logbook Pro

$250.00

$360.0031% off

DESCRIPTION

The Logbook Pro is a ground breaking evolution in telematics applications. It delivers the capability to monitor and act upon engine diagnostics information in real time in addition to a robust set of vehicle tracking features. Using industry standard CAN bus protocols, the Logbook Pro can be quickly and safely installed on a variety of vehicles. OBD can connect to any Bluetooth enabled Device.

KEY SPECIFICATIONS

Wireless Engine Diagnostics can be utilized to implement:

Proactive vehicle maintenance
Fuel efficiency monitoring
Driver behavior detection
OBD, J1939
OBD, J1708

PRODUCT INFORMATION


Physical Information	L x W x H: 2.55 in x 1.92 in x 1.02 in Housing: ABS Weight: 45 grams
Application Interface	Host Protocols: AT Commands, UDP/API TCP/API
Band Operation	LTE FDD: B2/B4/B12 Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
GPS/A-GPS Functionality	GPS/GLONASS/BeiDou/Galileo/QZSS Cold start @open sky Autonomous 31 s XTRA enabled 11.54 s Warm start @open sky Autonomous 21 s XTRA enabled 2.52 s Hot start @open sky Autonomous 2.7 s XTRA enabled 1.82 s
GSM Functionality	GSM SMS: PDU,MO/MT SMS Cell Broadcast
Special Features	Wireless Firmware Updates Internal Antennas Internal Battery Locking Connector Accelerometer
Electrical	8V to 24V 300mAh Li-Ion polymer 200uA Sleep Mode 2mA Snooze Mode (Network On) 30mA Active Mode (Network + GPS On)
Data	Cat M1: Max. 375Kbps (DL), Max. 375Kbps (UL) Cat NB1: Max. 32Kbps (DL), Max. 70Kbps (UL) EDGE: Max. 296Kbps (DL), Max. 236.8Kbps (UL) GPRS: Max. 107Kbps (DL), Max. 85.6Kbps (UL)
Environment	Operating: -10°C to 60°C Storage: -40°C to 85°C (Except Battery) Humidity: 90% non condensing
SIMCard / Interface / IO	Internal 3V SIM (Form Factor 4FF) OBD Connector J1708, J1939, CAN, OBD II
